GİRİŞ
Kullanım Talimatları
Multi-UVTools'e hoş geldiniz. Bu uygulama Quansheng telsizinizi yönetmenize yardımcı olur.
Başlarken
Telsizinizi USB üzerinden bağlayın. Baud hızı: 38400 (Varsayılan) / 115200 (Belirli firmware'lar için).
Kullanılabilir Özellikler:
- Araçlar: Bellek yedekleme/geri yükleme, kalibrasyon yönetimi ve HEX görünümü
- Flash: UV-K5/K6/5R ve UV-K5 V3/K1 telsizleri için firmware flash
- Kanallar: Telsizden kanal okuma, düzenleme ve yazma
- Ayarlar: Temel ayarlar, DTMF kontakları ve FM radyo frekanslarını düzenleme Yansıtma: Telsiz ekranını gerçek zamanlı yansıtma
- SMR: SMS çerçevelerini gönderme ve alma için kısa mesaj radyosu
Önyükleme Modu:
Firmware flash yapmak için, güç tuşuna basılıyken telsizi açarak önyükleme modunda bağlayın.
⭐ Quansheng UV-K5 İçin Komple Dokümantasyon — Ludwich66 Wiki
Dokümantasyon ve referans için olağanüstü bir çalışma.
Açık Kaynak Proje
Bu web sitesi GitHub'umda mevcut (spm81) Matoz.
Kod açık kaynaklıdır, böylece herkes siteye katkıda bulunabilir ve geliştirebilir. Ayrıca özel firmware'ınızın eklenmesini isteyebilir veya GitHub'da pull request oluşturabilirsiniz, ben de onları koduma ekleyeceğim.
Umarım çalışmamı beğenirsiniz! 🚀
UV-K5/K1 ALET KİTİ
Telsizinizi yönetmek için araçlar.
Telsizi yedekleme, geri yükleme, firmware güncelleme, kanal düzenleme ve temel ayarlar için bağlayın.
Bellek: 8 KB EEPROM | 200 Kanal | Harici EEPROM
EEPROM yedeği
Telsizin geçerli yapılandırmasını kaydedin.
Dosya .bin olarak indirilecek.
EEPROM'u Geri Yükle
Telsize bir yedek dosyasını geri yükleyin.
Kalibrasyonu Dök
Kalibrasyon alanını kaydedin (0x1E00-0x2000).
Kalibrasyon dosyası .bin olarak indirilecek.
Kalibrasyonu Geri Yükle
Yedek dosyasından kalibrasyon verilerini geri yükleyin.
Beklenen boyut: 512 bayt.
Acil Durum Kalibrasyon Geri Yükleme Aracı
Önceden yüklenmiş dosyalardan kalibrasyonu geri yükleyin.
⚠️ Uyarı: Yalnızca acil durumlarda (şifreli telsiz, kilitli telsiz veya yanlış yapılandırılmış telsiz) ve/veya telsizinizin kalibrasyon dosyanız yoksa kullanın.
Varsayılan kalibrasyonunu geri yüklemek için bir model seçin.
EEPROM Boyutunu Kontrol Edin
Sarma-around testi kullanarak telsizinizin bellek boyutunu otomatik olarak algılar. Bu güvenli ve yıkıcı olmayan bir işlemdir.
Test edilen boyutlar: 8 KB, 64 KB, 128 KB, 256 KB, 512 KB, 1 MB, 2 MB
EEPROM'umu Temizle Belleği
⚠️ YIKICI İŞLEM - Kalibrasyon alanlarını korurken tüm belleği 0xFF (fabrika boş durumu) ile doldurur.
Korumalı alanlar (SİLİNMEZ):
K5/K1: 0x1E00-0x2000 (512 bayt)
TK11: 0x010000-0x021000 (68 KB - Kalibrasyon)
Telsiz Şifre Kilidi
Başlangıç şifre kilidini yönetin (6 haneli PIN).
Adres:
İpucu: Kilidi devre dışı bırakmak için boş şifre girin ve yazın. Kalıp: FF FF FF FF FF FF FF
Gelişmiş Araçlar
HEX View
CHANNELS TOOLS
Channel editor.
Read, edit and write channels to the radio.
-
| # | Name | RX Freq | TX Freq | Mod | BW | Power | RX Tone | TX Tone | Step | Scrambler | List |
|---|
SETTINGS TOOLS
Basic settings editor.
Read and write settings from the radio.
⚠️ Work in progress. Do not use yet.
-
Firmware Profile
Select the firmware profile to use for settings.
DTMF Contacts
Manage DTMF contacts stored in the radio (EEPROM: 0x1C00 - 0x1D00).
| # | Name (8 chars) | DTMF ID (0-9, A-D, *, #) |
|---|
Radio (FM Frequencies)
Quick frequency memory slots (EEPROM: 0x0E40 - 0x0E68).
| # | RX Frequency (MHz) |
|---|
Select a firmware profile and click "Read Settings" to load settings from your radio.
MIRROR TOOL
Display mirror
Mirror the radio display in real time.
No radio connected.
SMR TOOL
SMR
Short message radio for sending and receiving SMS frames.
Select the message app in the radio (F+M) to use this tool.
No radio connected.
Messages
Use Enter to send.
RECOVERY TOOL
🔧 Unbricking UV-K5 V1
Restore a bricked UV-K5 V1 using ST-LINK V2 and OpenOCD
⚠️ F4HWN 4.3 Fusion 🔥 Edition is ONLY compatible with UV-K5 V3 and UV-K1. When flashed onto a UV-K5 V1, it causes a complete brick. Fortunately, the UV-K5 V1 can be fully restored using OpenOCD and a ST-LINK programmer.
❌ When do you need this?
Your UV-K5 V1 may be bricked if:
- ❌ The radio does not power on anymore
- ❌ DFU mode is unavailable (PTT + Power ON doesn't work)
- ❌ No LED activity at all
- ❌ Flashing tools cannot detect the device
This usually happens when you flash a UV-K5 V1 with firmware meant for UV-K1 or UV-K5 V3 (like F4HWN Fusion 🔥 Edition).
📋 Requirements
- 🔌 ST-LINK V2 programmer (original or clone)
- 🔗 4 Dupont jumper wires
- 🔧 Small screwdriver to open the radio
- 💻 OpenOCD installed on your computer (Windows / macOS / Linux)
📥 Installing OpenOCD
Verify installation: openocd --version
OpenOCD successful output
🔌 SWD Connection Points

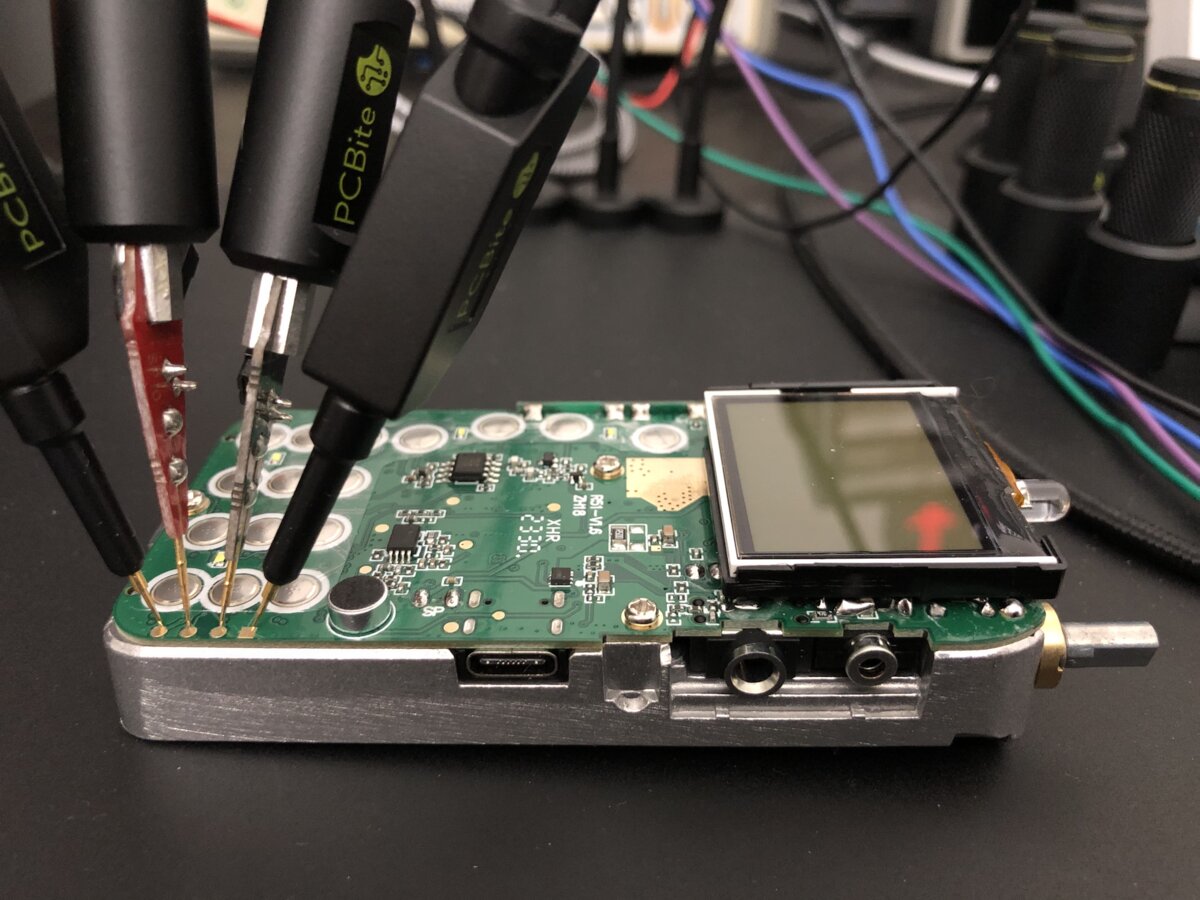

The radio must be opened to access the front side of the PCB. Connect the ST-LINK V2 to these pins:
| Signal | UV-K5 V1 Pad | ST-LINK Pin |
|---|---|---|
| GND | GND pad | GND |
| SWCLK | SWCLK pad | SWCLK |
| SWDIO | SWDIO pad | SWDIO |
| 3.3V | VCC pad | 3.3V |
📍 PCB Connection Images

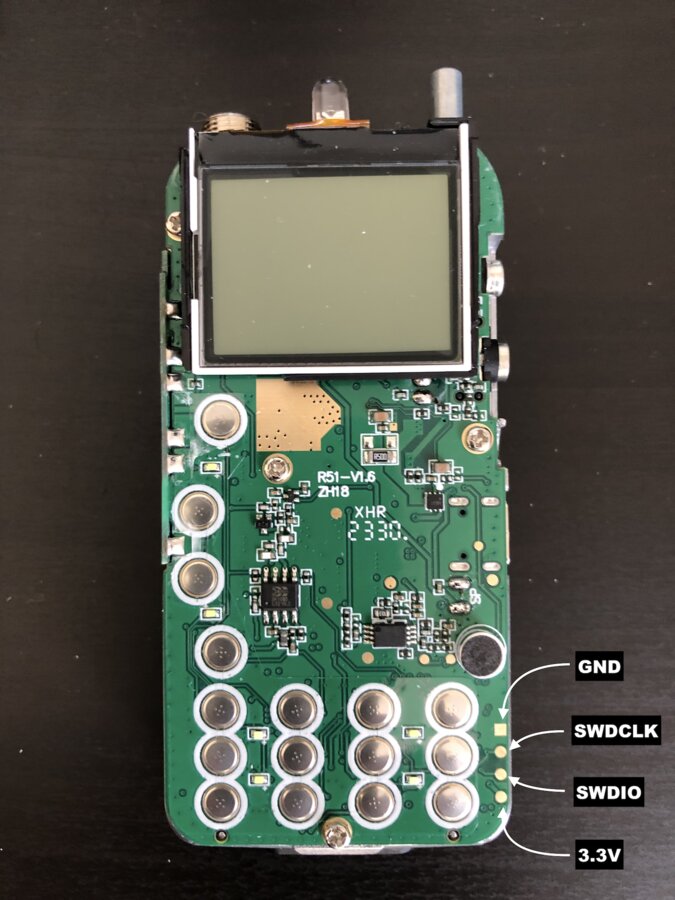

SWD Pinout Location

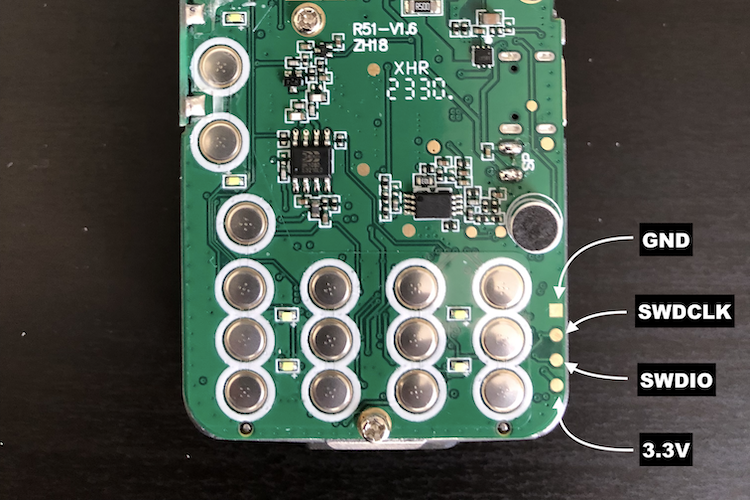

PCB Connection Points
📦 Download Unbrick Toolkit
Download the complete toolkit containing bootloader, OpenOCD configs, and helper script:
Or download individual files:
⚡ Unbrick Procedure
Step 1: Connect the ST-LINK
- Connect the ST-LINK pins to the SWD pads:
- 3.3V → 3.3V
- SWDIO → SWDIO
- SWCLK → SWCLK
- GND → GND
- Plug the ST-LINK into your computer
- Power on your UV-K5 V1 (normal mode, without battery)

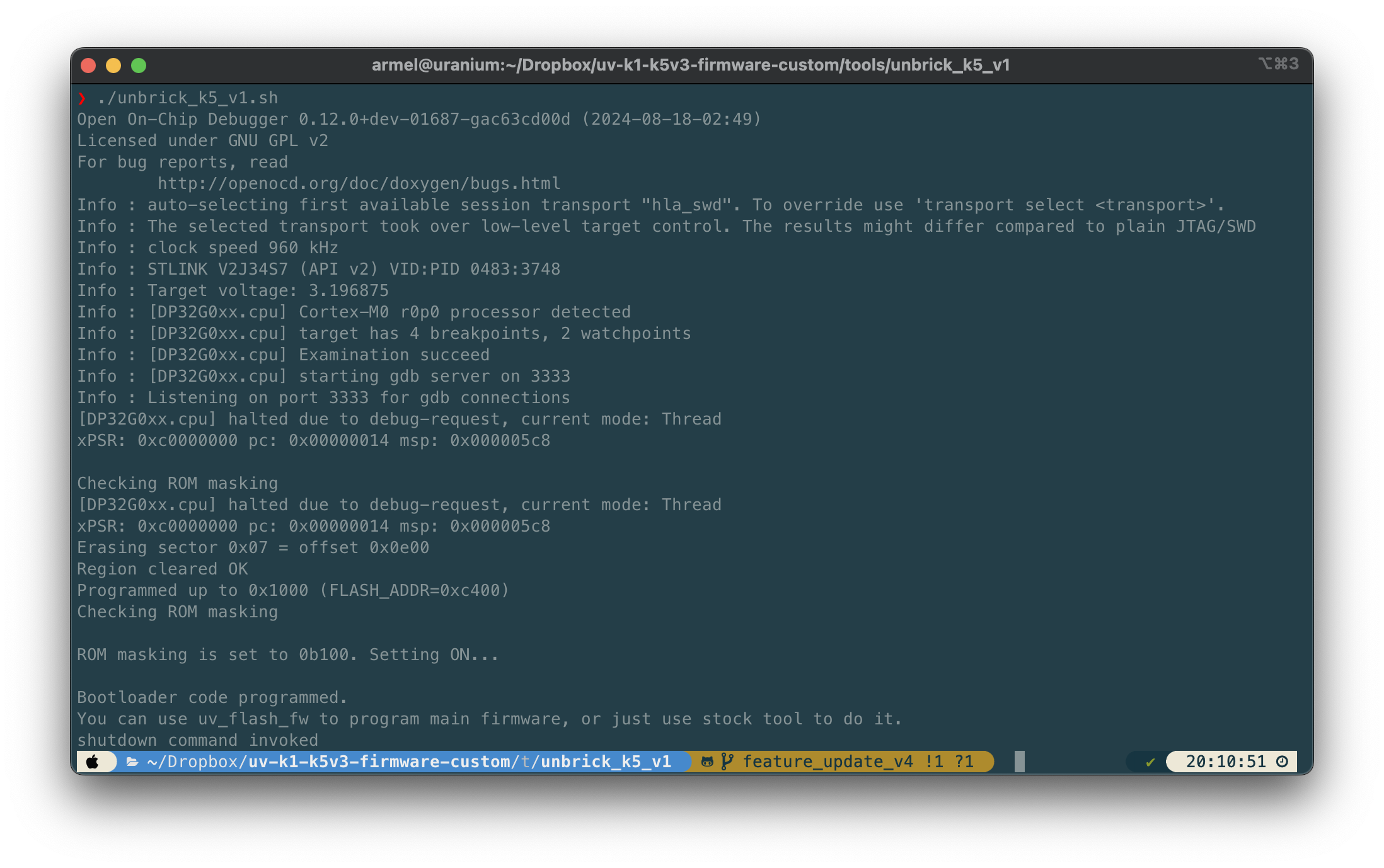

Step 2: Flash the Bootloader
From the unbrick_k5_v1 directory:
✅ Step 3: After Successful Flash
If no errors appear, the bootloader has been successfully restored:
- Disconnect and remove the ST-LINK from your UV-K5 V1 SWD port
- Reinstall the battery
- Power on the radio in DFU mode (hold PTT + Power ON)
✅ The device should now start correctly in DFU mode again. You can then flash stock firmware, or the F4HWN firmware for UV-K5 V1 (not the Fusion 🔥 Edition).
🎬 Video Demonstration
Watch the complete unbrick process in action. The video is included in the toolkit download.
📺 Video Tutorials
If you're new to ST-LINK, OpenOCD, or SWD debugging, these videos will give you a clear visual overview:
ℹ️ These resources are not mandatory, but they can make the procedure much easier to follow.
⚠️ Important Notes
- This procedure is for UV-K5 V1 only
- UV-K5 V3 and UV-K1 use different firmware and don't need this
- Opening the radio may void warranty
- Work carefully with the PCB connections
- Double-check all wiring before powering on
- Never connect battery while ST-LINK is connected
This procedure requires opening the device and directly manipulating its microcontroller over SWD. Incorrect use may permanently damage the radio. Proceed at your own risk.
❤️ Guide and tools by F4HWN (Armel) • Windows version by @dguimaraes88
FLASH TOOLS
UV-K5/K1 Flash Tools
RT-890 Flash Tools
Flash firmware for UV-K5 and UV-K1 radios.
UV-K5/K6/5R firmware Firmware
⚠️ Connect the radio in boot mode ( PTT + Power ON ) from the navigation bar before flashing.
Flash Firmware (UV-K5/K6/5R)
Select a pre-loaded firmware or upload your own.
No firmware selected
UV-K5 V3 & UV-K1 Firmware
⚠️ Connect the radio in boot mode ( PTT + Power ON ) from the navigation bar before flashing.
Flash Firmware (UV-K5 V3 & UV-K1)
Select a pre-loaded firmware or upload your own.
No firmware selected
